單位：mm
|

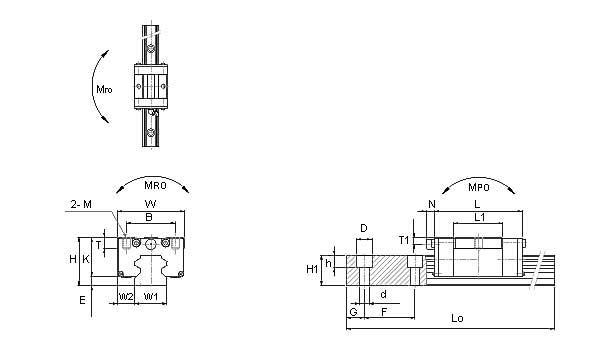

型號 |
安裝尺寸 |
滑塊尺寸 |
|||||||||||
|
H |
E |
W2 |
W |
L |
安裝孔尺寸 |
L1 |
K |
T |
注油嘴 |
||||
|
B |
M×l |
安裝孔 |
T1 |
N |
|||||||||
|
SBS15SV |
24 |
2.65 |
9.5 |
34 |
42.9 |
26 |
M4×5 |
22.9 |
21.35 |
6 |
?3.5 |
4 |
5 |
|
SBS20SV |
28 |
3.5 |
12 |
44 |
54.2 |
32 |
M5×7 |
27.8 |
24.5 |
7.5 |
M6×0.75 |
5 |
9.8 |
|
SBS25SV |
33 |
5 |
13 |
48 |
62.6 |
35 |
M6×8 |
35.2 |
28 |
8 |
M6×0.75 |
5.2 |
9.8 |
|
|
|||||||||||||
|
型號 |
導軌尺寸 |
負載能力 |
重量 |
||||||||||
|
W1 |
H1 |
F |
d×D×h |
G |
L0MAX |
動負載 |
靜負載 |
靜態扭矩(Kgf*m) |
滑塊 |
導軌 |
|||
|
C(Kgf) |
C0(Kgf) |
MR0 |
MP0 |
Mr0 |
(Kgf) |
(Kgf/m) |
|||||||
|
SBS15SV |
15 |
15 |
60 |
4.5×7.5×5.3 |
20 |
3000 |
458 |
738 |
4 |
3 |
3 |
0.11 |
1.45 |
|
SBS20SV |
20 |
17.5 |
60 |
6×9.5×8.5 |
20 |
4000 |
781 |
1378 |
12 |
10 |
10 |
0.19 |
2.2 |
|
SBS25SV |
23 |
21.8 |
60 |
7×11×9 |
20 |
4000 |
1152 |
2154 |
19 |
17 |
17 |
0.32 |
3.1 |
